Will a smart lock fit my door? The honest answer for Malaysian homes
Homeowners in Petaling Jaya often ask us a simple question: will a smart lock fit my door?
Our local experience shows that most standard entries do accept modern units, provided you select the correct model. Buying a unit that clashes with your existing hardware results in a frustrating, expensive return process.
We start every smart lock installation by performing a detailed, free hardware assessment. This initial check guarantees the new device will function correctly from day one.
Let us review the exact measurements, the required clearance, and the common configurations you need to check before making a purchase.

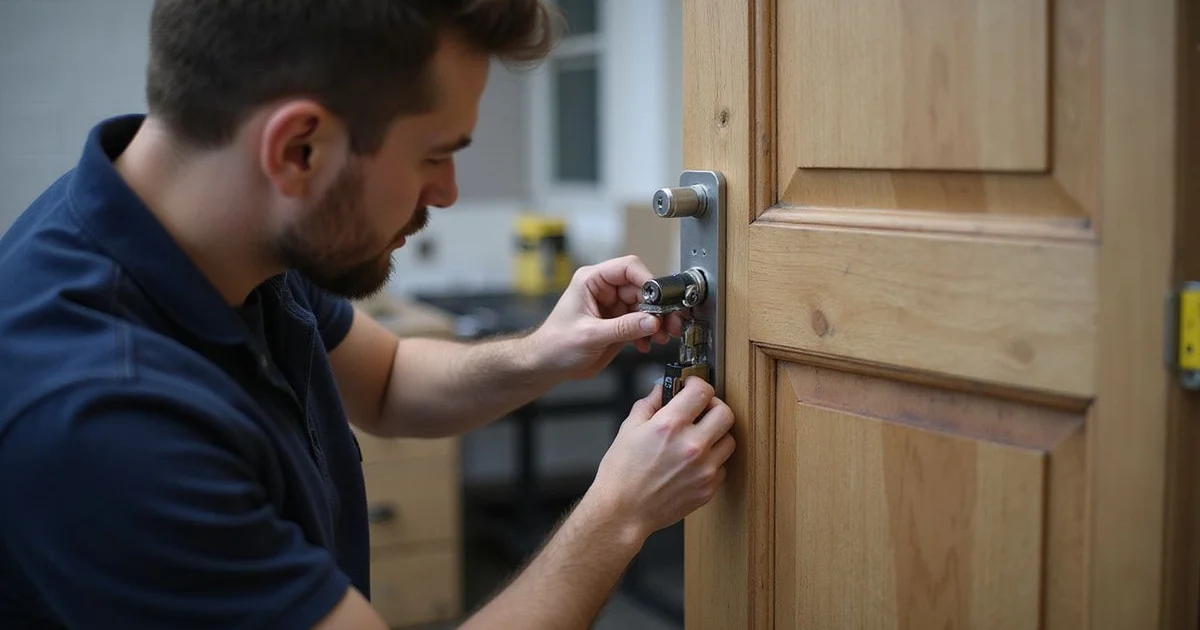

The four things that determine fit
Four specific measurements dictate whether a digital unit will mount securely to your property. Knowing these numbers immediately narrows down your choices to models that will actually work.
- Door thickness: Standard Malaysian timber doors typically measure 38mm to 45mm thick. Most popular 2026 releases from brands like Samsung or Aqara require a minimum of 40mm, though extender kits can accommodate doors up to 80mm.
- Lock case format: You need to match your new device to your existing mortise pocket, rim plate, or deadbolt hole. Swapping formats is possible, but it requires substantial woodworking or metal modification.
- Stile width: This vertical edge area must be wide enough to hold the keypad body. Narrow stiles under 80mm severely restrict your options to specialized slimline profiles.
- Gate clearance: Many homes in the PJ area feature an outer metal grille. Our technicians always check that you have at least 70mm of clearance between the wooden surface and the outer gate so the new handle does not get stuck.
- Material composition: Timber, metal, aluminium, and uPVC all require completely different mounting hardware. The drilling techniques also vary wildly between these materials.
The three common formats, in plain English
Digital entry systems generally fall into three distinct mounting categories. Identifying your current setup is the fastest way to find a compatible replacement.
- Mortise formats: This one-piece unit drops directly into a pocket already cut into the door edge. The 6085 size (60mm backset and 85mm center distance) is the standard specification found in most Malaysian timber front doors.
- Rim formats: These surface-mounted units bolt directly to the back of the panel instead of sitting inside a pocket. Our team frequently installs models from Novalock or Xeno as upgrades for older grille gates and heavy security doors.
- Deadbolt formats: This style sits entirely separate from the main handle and drives a solid bolt right into the frame. You will often see this paired with a traditional lever latch on condominium entries.
Common Malaysian door types and what fits
Different property styles across the Petaling Jaya region usually feature predictable hardware setups. Matching your property type to this baseline helps you start your search in the right category.
| Door type | Common formats | Key Considerations |
|---|---|---|
| Timber main door (PJ landed home) | Mortise unit | Standard 38mm to 45mm thickness usually fits most 2026 models. |
| Condo unit door (HDB-style flush door) | Mortise or deadbolt | Check strata rules before drilling new deadbolt holes. |
| Metal grille security door | Rim unit | Requires IP64 weather rating if exposed to heavy rain. |
| uPVC sliding door | Specialty or deadbolt | Narrow stiles mean you need a slimline profile design. |
| Aluminium framed door | Rim or specialty unit | Needs careful drilling to avoid shattering internal glass. |
| Multi-point lock door (newer condo) | Specialty multi-point | You must verify compatibility with the existing locking rods. |
If you remain unsure about your current setup, capturing a few specific angles will help us diagnose the situation. We can quickly identify the exact format and recommend fully compatible models.
Please grab your smartphone and take a few clear photos. This visual evidence allows us to evaluate your entrance accurately.
- The front exterior (fully closed, showing the whole panel).
- The side edge near the latch (slightly open to reveal the metal plate).
- The interior backing (showing the thumb turn or inside handle).
Doors that often need extra work
Certain architectural styles require professional modification before a modern device will sit flush. Attempting to force a unit onto an incompatible frame will void your hardware warranty and compromise your security.
- Very old timber panels: Historic homes in older PJ districts often feature non-standard pocket sizes. Our installation crew typically recuts these cavities to fit the modern 6085 mortise dimensions.
- Heavy security doors: These metal-reinforced entries might require specialized mounting brackets so we do not damage the internal locking rods.
- Misaligned frames: A house that has settled over time can cause the latching point to drift. We always insist on realigning the hinges first, as a digital deadbolt will jam and drain its battery if it hits the strike plate at an angle.
- Failing internal mechanisms: A sagging lever or a stiff key cylinder indicates existing hardware damage. Fitting a smart keypad over a broken internal latch will not fix the root mechanical issue.
Most modifications remain minor, and full transparency is our strict policy. We will explain the exact scope and any additional cost before bringing out the cutting tools.
Our guarantee is that we never sell a system you cannot install cleanly. This upfront honesty prevents wasted time for everyone involved.
When a smart lock isn’t the right answer
Some entrances simply lack the structural integrity to support sensitive electronic hardware. Installing an expensive system on a flawed foundation will only cause repeated failures and security risks.
A wooden panel that has warped severely from the Malaysian humidity will constantly misalign with the frame. This physical stress forces the internal motor to work overtime, leading to rapid battery drain and frequent jamming errors. We strongly suggest repairing the structural damage first, or sticking with a high-quality traditional lockset.
Our Golden Rule: Never install a digital device on a door that you have to push, pull, or lift to close properly.
If you are still asking yourself, “will a smart lock fit my door,” review our breakdown on smart lock vs traditional deadbolt: which is right for you. This guide covers the practical differences in daily usage.
You can also explore reputable options by reading our curated guide to the best smart locks for Malaysian homes. Send us a quick WhatsApp message with photos of your current hardware today. We will respond with a free, no-obligation fit assessment within hours so you can make a confident decision.
